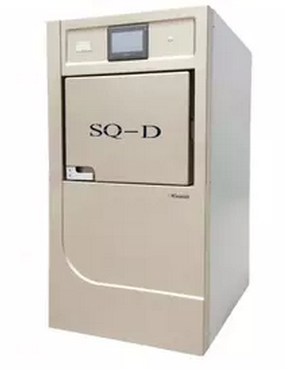

Hydrogen Peroxide Plasma Sterilizer
Sanqiang brand low temperature plasma sterilization system is in low temperature,vacuum,plasma generated by high frequency electric field in the sterilization chamber,wherein the active material and the microbial metabolism of potein and nucleic acid react to destroy micoorganisms and disrupt the micobial survival function,withH2O2 as a medium role in the microbial cell,further on killing microorganism.
Sterilization room size (L× w × h) cm
Total power (Kw)
Can not be sterilized goods and material
Arliclcs that arc not completely dry,disposablc articles,an article or material that absorbs a liquid,an occluded lumen,liquid or powder,can not withstand the vacuum equipment,apparatus for use only with pressure steam sterilizatian,instruments with internal componenes,it is difficult to clean,articles made from cellulose containing materials or any other article containing wood pulp,ard implants.
Biological indicator,Hydrogen peroxide sterilization agent,Chemical indicator label（card),Non-woven fabric,Special packaging.
Specifications,target ranges and requirements.
The sterilization room door
Automatic locking device afice after the staet of the.device sterilizationprocedures to complete the back door to be automatically released,to effectively prerenty misuse.
1。ColorLCD touch screenChinese display2。Chinese real time display of the main parameters3。Automatic display opcration steps and running state ,etc。
5052Aluminum or 304stainless steel
Full automatic control system
LCDtouch screen display,PLCprecise control,safe and reliable;One button start to the end ,the whole process automatically completed, the system can be upgraded to maintain。
The use of micro printer,print out the whole process of the sterilization of the data,can be used forpermanent preservation.
Built in pressure sensor imported from Japan,the automatic detection of pressure inside the cavity,effective to ensure the accuracy of the pressure inside the cavity.
Display temperature,pressure,sterilization time,fault tips and other information.
The temperature sensor automatically detects the caviey temperature,and ensures that the temperature inside the cavity is kept within the range of 50℃±3℃
Germany imported vacuum pumps,simple and convenient, fast vacuum rate,long service life。
Domestic initiative,precision metering dosing system.
The first domestic cavity type equipment can be broken from 2 meters to 4 meters and can completely stcrilize the manufacturers。
Using explosion-proof flame retardant electric heating system,the temperature is more uniform and accurate,convenient and quick.
Multiple protection function
With over-temperature protection function,and the display screen has a fault display screen,so that after sales staff to deal with the fault point faster and better。
